Sheet Metal Stamping

Sheet metal stamping (also known as sheet metal pressing and forming) is the process of placing flat sheet metal in either blank or coil form into a stamping press where a tool and die surface forms the metal into a net shape. We are one of the leading sheet metal stamping suppliers and we have custom sheet metal stamping for you.

Xiertek USA Custom Sheet Metal Stamping Part Parameter

Items Parameter
Part Material Selection Parts can be formed, stamped, or fabricated.
Material options include Carbon Steel, Stainless Steel, Aluminum, or Copper Alloys.
The annual quantity per part number ranges from 1,000 units to 100,000 units.
Part Size
  • Preferred Part Size:
    Formed parts with flatbacks that are smaller than 85" x 11" Acceptable
  • Part Size:
    Formed parts with flatbacks up to 14" x 17"
We also offer customization for larger part sizes upon request.
Value Added Secondaries Orbital Riveting
CD Stud Welding
1PEM Fastener Insertion
Kitting & Labeling
Machining
Part Thickness Hot Rolled Steel, Cold Rolled Steel, or Galvanized Steel: 0.15" to 0.194" (6 gauge)
Annealed Stainless Steel: 0.015" to 0.120"
Aluminum or Copper Alloys: 0.015" to 0.190"
Part Tolerances Pierced Holes: +/- 0.003" on the shear side of the hole
Blanked Dimensions: +/- 0.005" on the shear side of the part
Formed Dimensions: +/- 0.010" inside of the bend
Bend angles: +/- 1 degree
Part Information Desired for Quotes Part drawings
Part volumes
Material and finish specifications
Brief description of the project
Samples (if available)

Custom Sheet Metal Stamping Materials

Metal stamping pressings and dies can work with various metals to diverse parts in Xiertek USA Fabrication's steel stamping factory. Metal pressing and forming material includes SGCC galvanized plate, SECC electrolytic plate, SUS stainless steel (model 201 304 316, etc.), SPCC iron plate, white copper, red copper, AL aluminum plate (model 5052 6061, etc.), SPTE, spring steel, manganese steel. Each metal pressing and forming material has its own advantages.

Benefits of Sheet Metal Stampings

Automakers benefit from the sheet metal pressing for different parts. The dies can be used again to manufacture parts with the same size and shape. All parts are guaranteed to meet strict specifications and tolerances.
Key benefits of our metal pressing and forming include: High quality, Low Cost, long-term durability and Fast Turnaround Time.
In Xiertek USA Metal Fabrication, metal pressing and forming can be handled almost entirely by machinery. Not only does this reduce the risk of human error or inconsistency, but it also lowers labor costs.
If you’re an automotive manufacturer looking for sheet metal stamping factory, choose Xiertek USA Metal Fabrication.

Custom Laser Cutting

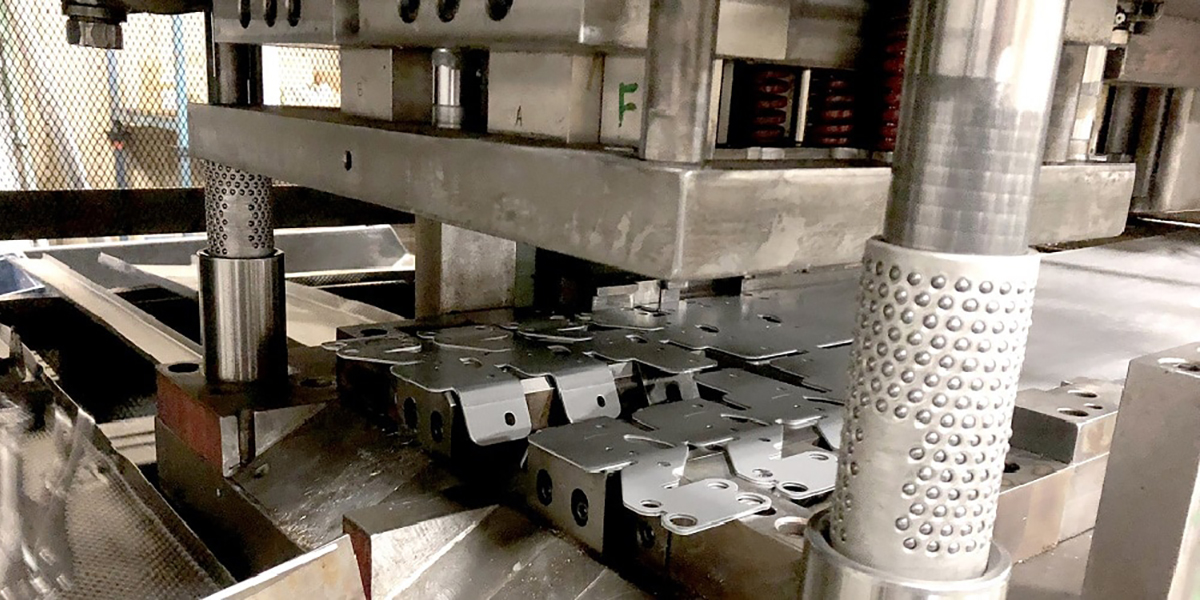

  • Our state-of-the-art stamping equipment produces precision metal stamping parts quickly and easily, without sacrificing quality. Xiertek USA Metal Fabrication utilizes advanced production equipment to deliver metal stamping parts of high quality, high precision.

  • Our advanced stamping equipment and technology includes: Quick change tooling, Die conversions, Tool and die making equipment, Press equipment.
